IP100H IP Radio/Handset

IP100H IP Radio/Handset
IP Communication Radio/Handset

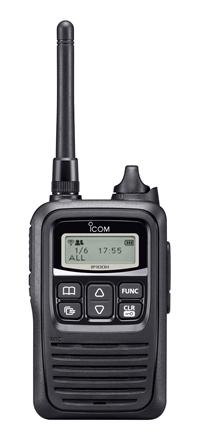

Despite its size, Icom’s compact IP100H WLAN/IP radio, is a powerful radio packed with many features.

Measuring only 95 mm high and weighing only 205 grams, the IP100H is one of the smallest professional radios in the market. The radio is additionally waterproof to IPX7.

The radio handles both individual and group calls and enables communication in full duplex if a headset is connected.

The IP100H acts as a wireless network radio. Everyone in your group can hear and talk with the rest of the group using the Icom IP1000C server connected to the wireless network. Individual calls are also possible as well as full duplex calls (like a regular phone call). The radio can also move freely within the wireless network. Coverage for your radio system can be easily expanded by adding further access points.

Main Features
• Compact 58x95x26.4 mm body and 205g (approximate) weight
• 20 hours of operating time
• Supports full duplex when a headset is connected
• Excellent sound quality
• High security with encrypted communication
• Vibrating function for incoming calls
• IPX7 waterproof (1m depth water for 30 minutes. Ideal for outdoor work or working in a wet environment.
• Ability to send alarm
• Built-in antenna can be used even without the external antenna in a wireless network.

  • AP-90M Wireless LAN Access Point
    The AP-90M is Icom's own compact WLAN Access Point.
  • BC-157S
  • BC-202
    Rapid desktop charger. Charges the BP-271 in 2 hours (approx.) inc. BC-06 AC adapter.
  • BP-271
    Li-Ion battery pack. 7.4V/1150mAh (min.), 1200mAh (typ). Operating time: 4.5 hours in FM and DV mode (Typical operation in 1:1:8 duty cycle). Same as supplied.
  • BP-272
    Li-ion battery pack 7.4V/1880mAh (min.), 2000mAh (typ.) Li-ion battery. Operating 8 hours in FM mode and 7.5 hours in DV mode. (Typical operation in 1:1:8 duty cycle)
  • BP-273
    Battery case (LR6 (AA) × 3) (New)
  • HM-153LS
    Durable type earphone microphone with slim L-type connector
  • HM-166LS
    Light type earphone microphone with slim L-type connector
  • HM-183LS
    The HM-183LS is a waterproof speaker microphone for use with the IP100H IP Handset and the ID-51E / ID-31E D-STAR handportables. The HM-183LS is waterproof even when attached to any of these radios.
  • HM-186LS
    Compact type speaker microphone with slim L-type connector.
  • HS-94
    Headset (Ear-piece type)
  • HS-95
    Hands-free operation. Requires VS-1/1L/1SL VOX unit for use.
  • HS-97
    (Earphone with Throat-mic)
  • IP1000C IP System Controller
    The IP1000C is the brains of Icom's advanced wireless radio system and keeps track of the radios in your network.
  • IP100FS IP PC Dispatcher
    The IP100FS is an IP based PC dispatcher that also serves as an additional radio on your network.
  • MB-127
  • OPC-2006LS
    Plug adapter cable. OPC-2006LS is required when using the HS-94, HS-95 and HS-97
  • OPC-2144
    Slim L-type plug adapter cable (Regular 2-pin connectors to slim L-type 2-pin connectors)
  • OPC-2328
    Add Push-To-Talk (PTT) functionality to the headsets on your IP100H WLAN handset with the OPC-2328 headset adapter cable.
  • OPC-478UC
    USB Cloning Cable - 3.5mm plug type for IC-F3022 series
  • VE-PG3
    The VE-PG3 is a radio over IP gateway that has two primary function modes;one is the bridge mode which interconnects two or more radio over IP networks. The other mode is the converter mode which interconnects calls between connected IP phone, analogue phone and radio systems.
