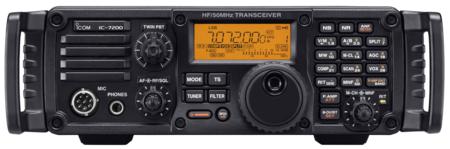

IC-7200

IC-7200

HF/50MHz Transceiver

The IC-7200 HF/50MHz transceiver maintains all the traditions of high quality engineering that you expect from Icom. Rugged in design and easy to operate, the IC-7200 utilises the latest digital functions including digital IF filter, twin PBT and manual notch filter which are normally associated with more expensive models. The IC-7200 is ideal for field operation or at home in your shack and is designed to be one of the most practical rigs available.

IF DSP
The IC-7200 utlises the latest IF DSP technology including digital IF filter, digital twin PBT and manual notch filter.

AGC loop management
Distortion and blocking from strong nearby signals are prevented by placing DSP functions inside the AGC loop. The AGC time constants are selectable from fast, slow and off for each operating mode.

Digital IF filter
The built-in digital filter allows you to flexibly select the filter width and shape from soft and sharp* and provides cutting edge filter characteristics. The twin peak filter for RTTY mode improves the frequency response and provides better readability in RTTY mode. * Filter shape is selectable for SSB and CW modes only.

Digital Twin PBT
Tailor your IF passband with the Twin PBT by electronically shifting the upper and lower edges of the IF filter. Depending on the use of the concentric knobs, you can either narrow the IF passband, or shift the entire passband to eliminate interfering signals.

Manual notch filter
The manual notch filter delivers more than 70dB of attenuation. Strong interfering tones will be eliminated without adversely affecting the AGC loop performance. On the bottom right of the front panel, a dedicated control knob adjusts the notch filter frequency.

Digital noise reduction
The digital noise reduction reduces background noise and improves the signal-to-noise ratio. The noise reduction level is adjustable in 16 steps which improves the readability of voice and data signals.

Digital noise blanker
The noise blanker reduces pulse-type noise such as engine ignition and sparking. The NB level and width (blanking duration) are adjustable in 101 steps.

High frequency stability
The IC-7200 has the built-in high stability crystal unit. It provides a very high frequency stability of ±0.5 ppm suitable for RTTY operation.

USB port for PC control The IC-7200 can be controlled by a PC through a USB port using the CI-V data format. In addition, modulator and received audio can also be transferred over the USB cable. By using appropriate external software, you can record incoming calls and/or transmit preprogrammed messages from your PC.

RF speech compressor
The digital RF speech compressor increases your average talk power in SSB mode. Even when the compression level is increased, the DSP controlled RF speech compressor provides low distortion audio.

CW mode operation
Full break-in, selectable CW carrier point (USB or LSB) and adjustable CW pitch are standard.

High stability transmitter
The DDS (Direct Digital Synthesizer) improves the C/N ratio and creates a noiseless, clean transmit signal.

100W output power
Using proven RD100HHF1 MOS FETs in a push-pull PA circuit and with a dual-fan cooling system, the IC-7200 provides a stable 100W output even during high duty cycle operation.

Tough construction against water intrusion
The buttons and knobs on the front panel have water resistant protection, providing a measure of protection against water intrusion. * IC-7200 is NOT waterproof.

Rugged design for outdoor use The IC-7200 has a rugged build, which means that the enjoyment of this rig is not limited to your shack.

Front mounted loud speaker
The front-mounted speaker provides clear audio sounds that can be clearly heard without impediment during operation.

IC-7200 Additional Features

  • RIT
  • VOX
  • LCD backlight (Hi/Lo/Off)
  • 201 memory channels
  • Built-in 20dB attenuator
  • Preamplifier
  • Dial lock
  • Auto TS function
  • 1Hz step tuning
  • Band stacking register
  • Built-in voice synthesizer
  • Auto notch filter
  • Power/SWR/ALC meter

  • IF DSP and digital functions built-in
  • Rugged outdoor build designed for field operation.
  • Optional carrying handles are available to aid portable use.
  • 30kHz -60.000 MHz wideband coverage
  • AGC loop management controlled by DSP
  • Flexibly selectable filter width and shape from soft and sharp
  • Manual notch filter delivers 70dB of attenuation
  • USB port for CI-V format PC control and audio in/out
  • 6kHz roofing filter
  • 2 year warranty
