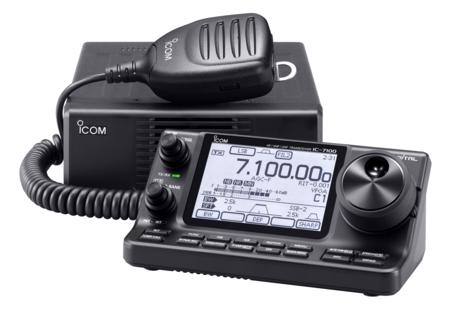

IC-7100 HF/VHF/UHF Transceiver

In 1995, almost three decades ago, Icom changed the way radio hams thought about mobile HF communication with the introduction of the IC-706. Since that time, the Icom Mobile HF radios have been the Performance HF mobile radio of choice. Now, Icom has once again changed mobile HF communications with the introduction of the IC-7100.

70MHz Band in European Versions
A first for an Icom transceiver, the IC-7100 is designed to the 70MHz band in European versions where now, 70MHz is open to Amateur radio enthusiasts.

Touch Screen Control Portal
An amateur radio first! The radio control head features a large, multi-function, "touch screen"' DOT-Matrix LCD display that is positioned for easy view and operation. This is an important feature as the controller display not only provides information, but is your control portal to the IC-7100's feature settings and menus.

Control Head
Breaking the the concept that a radio panel should be flat, the IC-7100's control head is designed for an optimal view angle for the LCD as well as the spacing for large fingers, and plenty of room to have a large internal speaker along with a CW keyjack, phone/speaker, microphone, and control cable.

D-STAR READY
The IC-7100 provides D-STAR DV mode digital voice and low speed data communication.

IF DSP Features
The latest 32-bit floating point DSP supports many digital processing features such as digital IF filter, twin PBT, manual notch filters. Of course, those highgrade digital processing features work on all ham bands, from HF to the 70cm band.

Other Features
• Built-in SD Card Slot for voice storage and data cloning
• Dual DSP chips deliver versatile digital processing performance
• Built-in RTTY demodulator and decoder
• Multi-function meter
• SWR graphic display
• DSP controller RF speech compressor
• Total of 505 memory channels
• Voice recording and playback functions
• 70-70.5MHz coverage, 50W output power (for Europe versions only, varies according to version.)
• 0.5ppm high frequency stability
• Optional RS-BA1 IP control remote control software

Supplied Accessories
• Hand microphone
• DC power cable
• Electronic keyer plug
• Spare fuses
• Key plug
• ACC cable
• Separation cable

To download the most up to date cloning/programming files of Icom D-STAR radios and data files of UK D-STAR repeaters and reflectors visit: http://downloads.d-staruk.co.uk/.

  • Intuitive Touch Screen Interface
  • Innovative Slant Top Controller
  • HF/6M/4M/2M/70cm & 70MHz
  • D-STAR DV Mode Operation
  • IF DSP Digital Processing
  • Built in Speaker
  • Mounting Base Option
  • Built-in SD card slot for voice storage and data cloning
  • Built-in RTTY demodulator and decoder
  • Multi-function meter
  • SWR graphic display
  • DSP controller RF speech compressor
  • Total of 505 memory channels
  • Voice recording and playback functions
  • ±0.5ppm high frequency stability
  • Optional RS-BA1 IP control remote control
  • AH-2B
    Mobile whip & bracket
  • AH-4
    100W HF Automatic Antenna Tuner can be used with a variety of Icom HF Amateur radios.
  • AH-5NV
    Fiberglass mobile mounting antenna element for use with AH-740.
  • AH-740
    Covers 2.5-30MHz (amateur band). OPC-2321 is required.
  • AT-180
    Automatic Antenna Tuner Unit
  • CT-17
    CI-V level converter (communications interface)
  • HM-103
    Hand Microphone with PTT and modular (telephone) type plug.
  • HM-151
    Full Keypad Remote Control Microphone
  • HM-198
    Hand Microphone.
  • IC-PW2
    A high-performance, multi-function linear amplifier is one of the key pieces of equipment for keen competition in DX hunting and contesting. Icom presents the forthcoming IC-PW2 HF/50 MHz 1 kW Linear Amplifier.
  • MB-62
    Mobile mounting bracket
  • MBA-1
    Control Head Mounting Bracket
  • MBF-1
    Suction cup mounting base for a variety of Icom mobile Amateur radios.
  • OPC-1529R
    Data communication cable (RS-232C type)
  • OPC-2218LU
    Cloning Cable (USB type)
  • OPC-2253
    Separation Cable 3.5m (11ft)
  • OPC-2254
    Separation Cable 5m (16ft)
  • OPC-2321
    Control cable adapter for AH-740
  • OPC-2350LU
    The OPC-2350LU USB Data Communication Cable.
  • OPC-589
    Microphone adapter cable
  • OPC-599
    Accessory extension cable
  • PS-126
    The PS-126 external switching power supply unit replaces the PS-125.
  • RC-28
    The RC-28 IP Remote Control System, allows Radio Amateurs to remotely operate selected Icom amateur transceivers with the enclosed RS-BA1 remote control software. The software comes complete with remote control USB encoder and will work with the IC-7100, IC-7200, IC-7300, IC-7410, and IC-9100 with a USB cable, and with the IC-756PROIII, IC-7000, IC-7400, IC-7610, IC-7700, IC-7800, IC-7850 and IC-7851 with a RS-232C cable.
  • RC-28 V.2
    The RC-28 IP Remote Control System, allows Radio Amateurs to remotely operate selected Icom amateur transceivers. Incorporating the RS-BA1 Version 2 software, the RC-28v.2 comes complete with remote control USB encoder and will work with the IC-7100, IC-7200, IC-7300, IC-7410, IC-7600 & IC-9100 via USB, the IC-7610, IC-7700, IC-7800, IC-7850, IC-7851 & IC-9700 via an ethernet cable, and the IC-705 via WLAN.
  • RS-MS1A
    The RS-MS1A (for Android™ devices) allows your Android device to wirelessly connect to a D-STAR transceiver and remotely set DR functions, link with a map app and send/receive messages in DV mode.
  • SM-30
    The SM-30 Desktop Microphone, is an entry level desktop microphone designed to work with Icom's range of HF base station radios.
  • SM-50
    The Icom SM-50 is a stylish unidirectional desktop microphone with a flexible neck, designed for base station operation with Icom’s range of HF transceivers.
  • SP-35
    The SP-35 external speaker replaces the SP-22 or SP-25 external speakers currently supplied with some of our mobile radios. The SP-35 is very similar to the SP-22 or SP-25 but features a more stylish, modern design.

The Icom IC-7100 is an innovative multiband transceiver that offers many exciting features including touch screen control and a first for an Icom rig...the addition of the 70 MHz band. To maintain its commitment to D-STAR, all versions of the IC-7100 will come with standard D-STAR DV mode.

This video shows the simplicity of touch-screen operation to control various settings in base operation.
